Progress Report and Design Changes document

JSAL prepared a design change document and provided a copy to the client (the capstone professors). The document provided the changes desired by the client to include a write-in feature within the firmware of eVote. The document also pointed out that additional funds may be necessary due to the added feature, but due to time constraints, the feature will be completed by clocking in additional hours and this will be reflected in future progress reports.

The keyboard was successfully integrated with the microprocessor and was able to navigate between two different screens. The security of the database data has also progressed to finding a 128 bit encryption method that uses a password that will be used to decrypt the database parameters when being called upon in the administrator program.

The screen for the write-in has been designed and implemented, but the navigational code has yet to be implemented and will be worked on after the progress report presentation.

The screens of eVote have been implemented except for the ballots for the governor and resident commisioner which will be worked on after the progress report due to the fact that these screens have images on them that require additional work to calculate their pixel positions.

LCD Screens, Navigation keypad and Database security

The team is working with the tasks for the second phase of the project. Laura is working with the write-in screen. In order to design the screen, a table is being used to establish the coordinates in which a letter will appear. Javier is working with the screens for voting. These screens include language selection, integral or mixed voting selection as well as write in option selection. Angel is working with the encryption and decryption of the information stored in the database. Sylvia is working with the keypad for navigation. Yesterday Sylvia and Javier tested the keypad to look at the output voltage from each of the pressed keys. The keypad regulates the input voltage to have an output voltage of 3V. Therefore, there is no need to have a voltage regulator. Sylvia, Javier and Laura are working with dependent modules from one another; therefore before start working the design was discussed.

Below a picture of the keypad testing

Lcd screens and navigation

During the day the team discussed feedback from friday's happy hour sessions. The day's work revolved around:

1. "Write-In" in-depth design : Write in screen has been designed and code is currently being made for displaying it on the LCD

2. Language selection in-depth design: Design began for the way in which the program handles language selection on the code level

3. Overview of Keyboard navigation

4. LCD matrix table (Excel): This table is being used to design the different screens (see image below)

Happy Hour delayed

Happy hour was delayed to friday due to heavy rain caused by Hurricane Omar.

LCD Updates

The LCD is now working!

After various days, it was observed that the initialization code was affected by the reset process. After the reset process was removed the LCD started working, but still had problems due to the voltage supply. The cables were not making the correct contact with the circuit and the power supply. After resolving the issue with the cables, the LCD worked.

Below some pictures of the LCD working.

Risk: Possible Change in Computers

We have been informed that the computers in room S-123 might be changed on friday or early next week.

We have made backups of our code and database in order to prevent any loss of information.
Also, we have informed the Help@ECE staff that the new computers will require the installation of: MySQL Server & Tools, MyODBC Driver 3.51, TortoiseSVN, Visual Studio 2008, and the BarCode font.

All the development plans have been made assuming Windows XP will be the OS used, so if these new computers have Windows Vista we might have to run our applications in a virtual machine with XP in order to avoid any issues.

Database Design Changes

Through out this phase there have been unplanned changes to the evote database. The Position table was removed since it wasn't vital and the information could be stored in a different table. This table might make coding efficient in the Raven version but for the Sparrow version it is not necessary.

Today, a column called "Barcode" was added to the candidate table . This field will store the text to be converted to the printed receipt.

A history table was added to associate a an official to a voter. This way, should there be any problems with a voter or an official, related people can be identified.

The kiosk table was given an additional identification number to make the voting experience better for voters and officials. The kID field is unique for every kiosk, so in a real life scenario every kiosk in the area using the system will have a different number. This number would only be useful when looking at the kiosks from an outside perspective. In the voting units, the officials and voters need local identification number that will make it easy for them to know where a voter has to go.

Hardware and Firmware

The hardware has been completely integrated, Javier decided it was better to use a breadboard for the project since it offers more stability in terms of movement compared to a wirewrapped pc board which was giving a challenge to integrate nicely with the LCD cables. So the wirewrapped circuit was undone and redone on the breadboard where we have completely connected all the LCD cables to their voltage, ground and data pins throughout the breadboard inverter and microprocessor circuits.

The programming of the firmware will be done on tuesday with the hopes of completing the initialization of the LCD and showing an onscreen test message as promised in the Gantt chart.

Database Connectivity Test Application

Angel recently completed a simple application, which tests the connectivity between the MySQL database and a C# application. It was implemented using ODBC with a simple GUI. With Laura's help, we managed to understand the implementation of queries and the ODBC Data Reader. All the testing done with the application has been successful and reviewed by all team members.

Inverter Updates

Javier has already completed the inverter circuit by wirewrapping. The connections were verified by Sylvia. Both, Javier and Sylvia tested the connection by applying a voltage to the circuit and verifying the output. The output was a valid voltage as an input into the VO pin (back plane voltage) of the LCD. Next week Javier will implement the connections for the LCD to the microprocessor and the inverter. After that is done, the first test screen will be implemented.

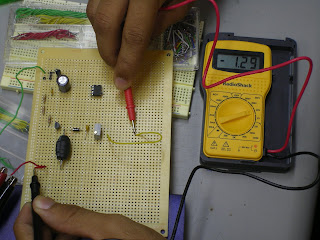

Below are the images of the wirewrapping and the voltage test.

Database updates

On monday, the staff installed Visual Studio 2008 in all four of our computers. The ODBC driver was also installed in the two remaining computers.

Laura is currently working in the Log In form for officials volunteering in the elections. The form is able to communicate with the database and drop down boxes with information on the db according to selections made in other fields. Laura is currently having issues with displaying some results that are included in three columns.

Angel is currently working with a test application that can prove votes are being inserted into the database. Sylvia has finished designing the UI for the administrator application and is now working with Laura to query information from the database

Functional Inverter and LCD

After receiving the components needed to implement an inverter that was designed for the LCD Screen which is copyrighted in 2006 by Snowleopard Labs and is used in this project by permission with an email for evidence backup.

The inverter has been connected as seen in the following pictures and each node was tested to make sure that the entry voltage did not fluctuate which could cause the LCD's max voltage to be passed causing the LCD to burn out.

The original design was modified to include voltage regulators to add an additional protective measure to avoid any components from receiving more voltage that desired. The voltage input for the inverter was set at 5 volts and the regulator prevents any voltage above this voltage from passing on into the inverter.

Javier was able to successfully complete the circuit and connect it to the LCD which turned on showing lines. At first it was assumed that the lines were not normal, but having done research before implementing the circuit, the lines that appear randomly are normal until the LCD is initialized with firmware.

It is being considered if we are to wire wrap the components and then proceed to the programming of the LCD using the IAR workbence program.

Inverter Connected to LCD

LCD with random lines - The contrast was adjusted using a potentiometer

Inverter Circuit that provides the Backplane voltage for the LCD (Vo)
